Product Specification

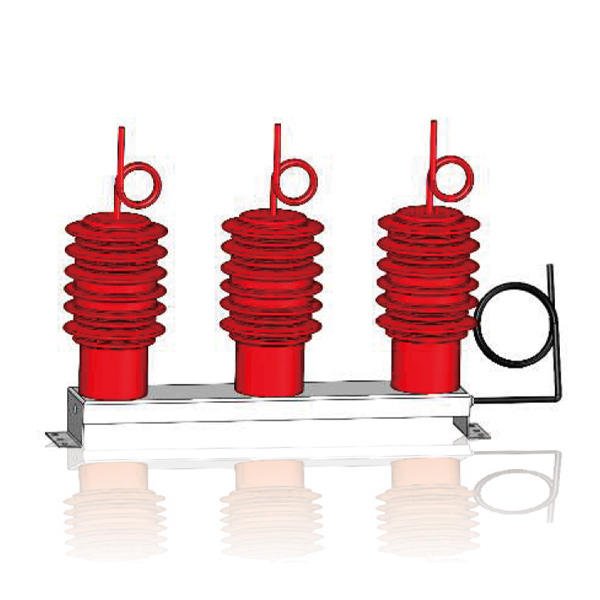

EVT-C3- -10voltage sensor is a capacitive voltage division structure, epoxy resin casting, high insulation strength, suitable for voltage measurement (measurement) and protection in AC 50/60 Hz lines with the highest electric voltage of 12 kV and below.

Secondary Terminals

ability, EVT-C3- -10 voltage sensor secondary signal terminal and signalline have been specially shielded, and customized interface schemes can be provided according to customers' specific

Principle and Characteristics

EVT-C3-10 voltage sensor are based on the principle of capacitive voltage division and have the following advantages:

● 3 phases phase sequence and zero sequence voltage measurement and protection signal sampling can be realized.

● The secondary output is a safe low voltage signal, the power consumption is greatly reduced, and the heat output is small.

● No ferromagnetic resonance, no need to configure fuse protection.

● No secondary short circuit high current risk, increased safety.

● Can measure DC and low frequency AC signal. .

● Product standardization, selection and ordering process simplification, fast delivery.

● Small size and light weight, easy to install

Combined with the versatile intelligent feeder terminal (FTU), these excellent features will greatly improve power protection andmonitoring.

Technical Specification

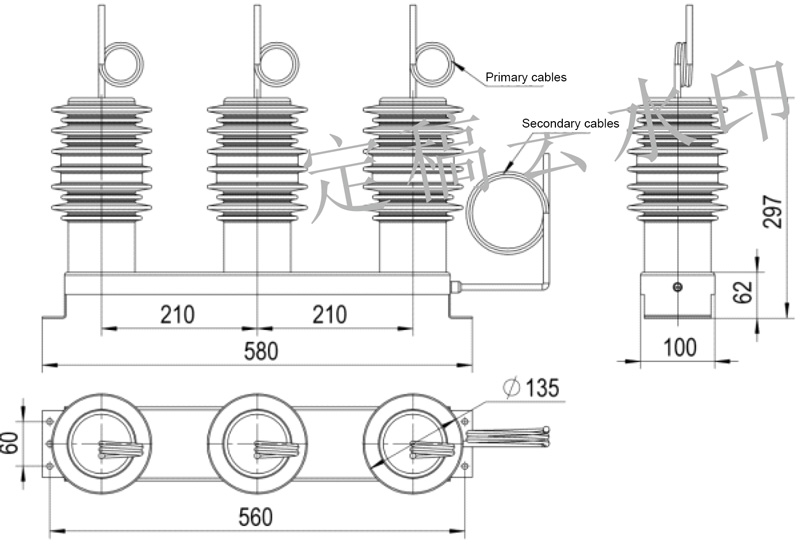

Dimensional Drawing
