Detail

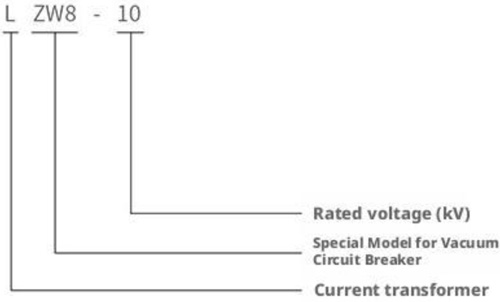

Model Meaning
Technical Parameters
Rated insulation level: 0.5/3kV
Pollution Level: I1 pole
Power factor of load: Cosφ=0.8 (hysteresis)
Ambient temperature: the minimum temperature is -5 °C, the maximum temperature is 40 °C, and the average daily temperature does not exceed 30 °C
Rated secondary current: 1A
Altitude: ≤ 1000 meters
Rated frequency: 50 or 60Hz
Product standard: GB20840.1 GB20840.2
Product Parameters
| Product Model | Rated Primary Current (A) | Rated Secondary Current (A) | Accuracy Class and Rated Output (VA) | Rated Insulation Level |
| LZW8-10 | 20 | 1 | 0.15Ω | 0.5/3 |
| 50 | 0.15Ω |
Note: 1. Special specifications or high-precision products can be made according to user needs.
2. The current transformer can only use one of the ratios during use, and several ratios cannot be used at the same time.
3. Any size can be customized according to customer needs.

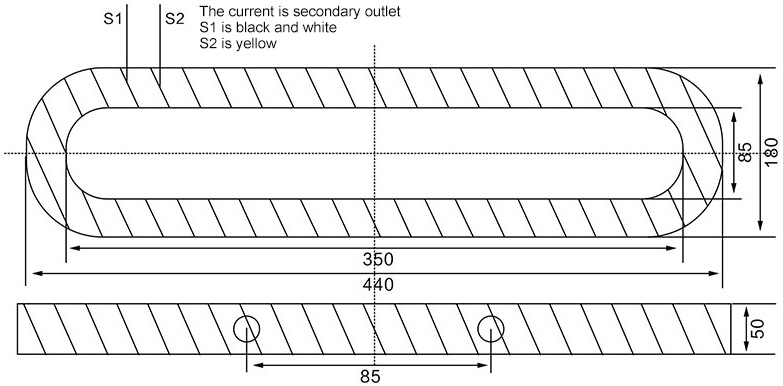

Installation Dimensions
