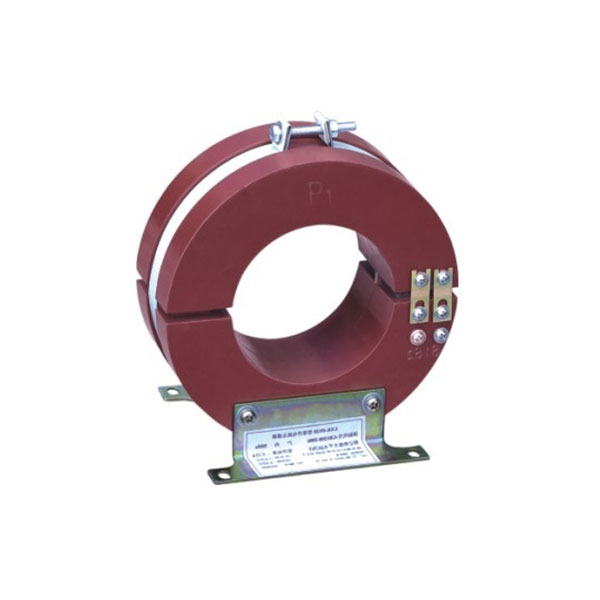

LXK-∅80~∅200 Zero-sequence Current Transformer

LXK-∅80~∅200 Zero-sequence Current Transformer

Product Category: Zero-Sequins, Current, Transformer

Intro:

LXK-∅80~∅200 Zero-sequence Current Transformer

Relate Products

Detail

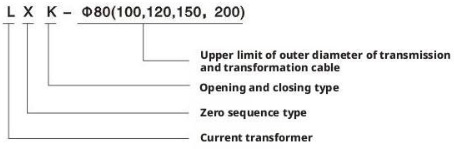

Model Meaning

Technical Parameters

Relay Model	Relay Coil Connection Method	Relay Scale Value	Primary Zero-Sequence Current (A)
DD-11/60	Series	15×1	2.4-4.5
	Series	30×1	2.4-4.5
	Parallel	15×2	3-5
	Parallel	30×2	3-5
DD-1/60	Series	15×1	3-5
	Series	30×1	3-5
	Parallel	15×2	3-6
	Parallel	30×2	3-6

Model	Rated Current Ratio (A)	Accuracy Class and Rated Output
LXK-Φ80 (Φ100, Φ120, Φ150, Φ200)	50/1, 60/1	Class 3, 1VA

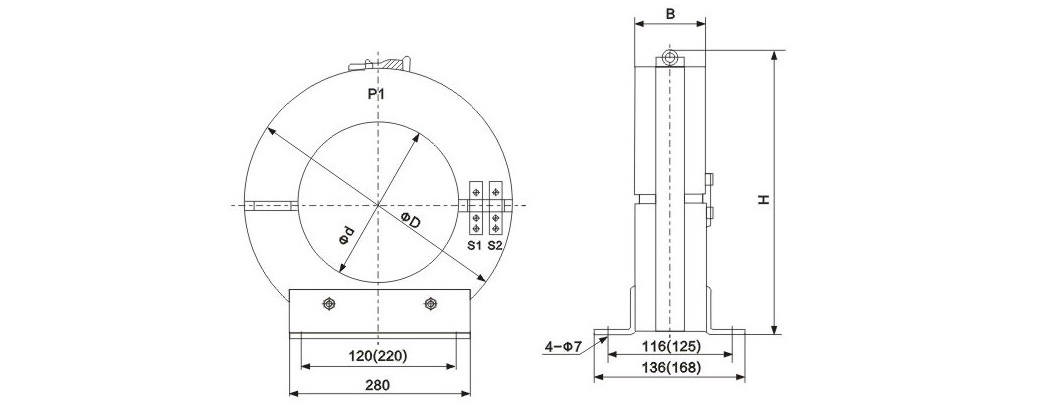

Installation Dimensions

Model	d	D	H	B
LXK-Φ80	80	160	180	70
LXK-Φ100	100	185	200
LXK-Φ120	120	200	220
LXK-Φ150	150	230	250
LXK-Φ200	200	325	325	80
