JLSZV3-10R Combined Transformer

Detail

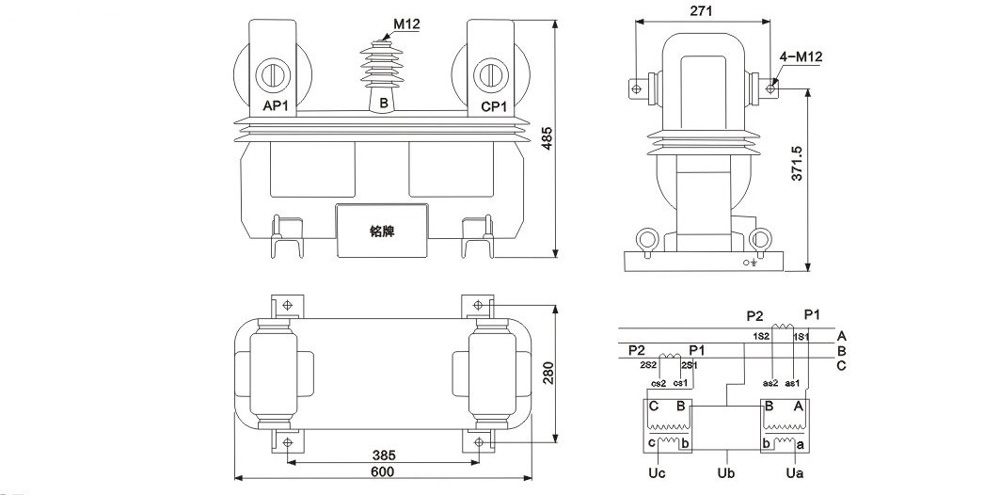

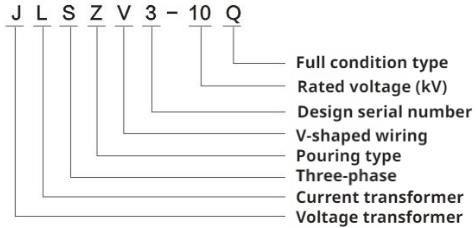

Model Meaning

Technical Parameters

Rated Voltage (kV)	Rated Current Ratio (A)	Accuracy Class Combination	Accuracy Class and Rated Output (VA)		Short-time Thermal Current (kA/s)	Rated Dynamic Stability Current (kA)
Rated Voltage (kV)	Rated Current Ratio (A)	Accuracy Class Combination	0.2(S)	0.5(S)	Short-time Thermal Current (kA/s)	Rated Dynamic Stability Current (kA)
10	5/5-15/5	0.2(S) 0.5(S)	10	15	120 I1n	300 I1n
	20/5-75/5				220 I1n	500 I1n
	100/5-200/5				34	85
	300/5-600/5				45	112.5
	Rated Voltage Ratio (V)	Accuracy Class Combination	Accuracy Class and Rated Output (VA)		Measurement Winding Thermal Limit Output (VA)
	Rated Voltage Ratio (V)	Accuracy Class Combination	0.2	0.5	Measurement Winding Thermal Limit Output (VA)
10000/100		0.2 0.5	15	50	300
10000/100		0.2 0.5	15	50	300
