FDGE11/□□-1 Type Discharge Coil

Detail

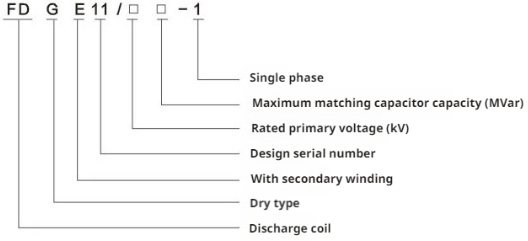

Model Meaning

Technical Parameters

Model	Rated Voltage Ratio (kV)	Accuracy Class and Corresponding Rated Output (VA)			Discharge Capacity (MVar)	Rated Insulation Level (kV)
Model	Rated Voltage Ratio (kV)	0.2	0.5	1.0	Discharge Capacity (MVar)	Rated Insulation Level (kV)
FDGE11/6.6√3-1.7-1	6.6/√3/0.1	20	50	100	1.7	7.2/32/60
FDGE11/7.2√3-1.7-1					1.7
FDGE11/11√3-1.7-1					1.7
FDGE11/11√3-2.5-1	11/√3/0.1				2.5	12/42/75
FDGE11/11√3-3.4-1	11/√3/0.1				3.4
FDGE11/12√3-1.7-1	12/√3/0.1				1.7
FDGE11/12√3-2.5-1					2.5
FDGE11/12√3-3.4-1					3.4
