JDZXF11-15、20 Voltage Transformer

JDZXF11-15、20 Voltage Transformer

Product Category: 15、20 Kvoltajitter Ransformer

Intro:

JDZXF11-15、20 Voltage Transformer

Relate Products

Detail

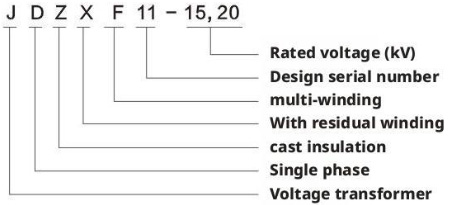

Model Meaning

Technical Parameters

Model	Rated Voltage Ratio (kV)	Accuracy Class and Combination	Rated Output (VA)	Thermal Limit Output (VA)	Rated Insulation Level (kV)
JDZXF11-15	13.8/√3/0.1/√3/0.1/√3/0.1/3	0.2/0.2/6P(3P) 0.2/0.2/6P(3P) 0.2/0.5/6P(3P) 0.5/0.5/6P(3P)	15/15/100 15/15/100 20/20/100 30/30/100	300	18/55/105
	15/√3/0.1/√3/0.1/√3/0.1/3
	15.7/√3/0.1/√3/0.1/√3/0.1/3
	18/√3/0.1/√3/0.1/√3/0.1/3
JDZXF11-20	20/√3/0.1/√3/0.1/√3/0.1/3				24/65/125

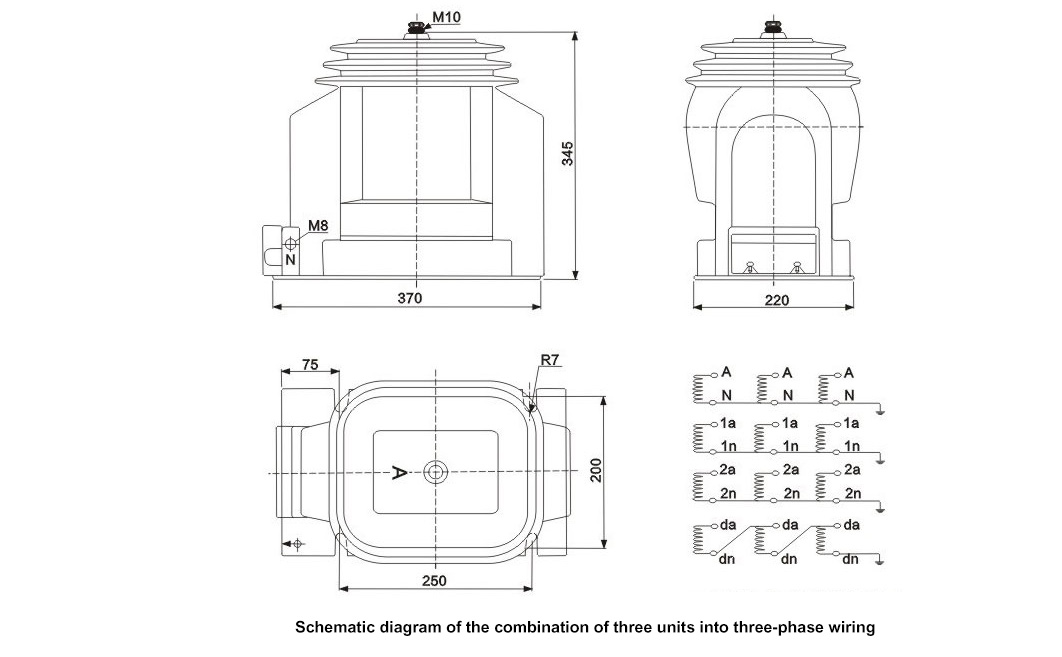

Installation Dimensions
