JDZX11-15、20 Voltage Transformer

Product Category: 15、20 Kvoltajitter Ransformer

Intro:

Contact Us

JDZX11-15、20 Voltage Transformer

PDF
Detail
Relate Products

Detail

Model Meaning



Technical Parameters

ModelRated Voltage Ratio (kV)Accuracy Class and CombinationRated Output (VA)Thermal Limit Output (VA)Rated Insulation Level (kV)
JDZX11-1513.8/√3/0.1/√3/0.1/√3/0.1/30.2/6P(3P)
0.5/6P(3P)
1/6P(3P)		30/100
30/100
80/100
150/100		40018/55/105
15/√3/0.1/√3/0.1/√3/0.1/3
15.7/√3/0.1/√3/0.1/√3/0.1/3
18/√3/0.1/√3/0.1/√3/0.1/3
JDZX11-2020/√3/0.1/√3/0.1/√3/0.1/324/65/125

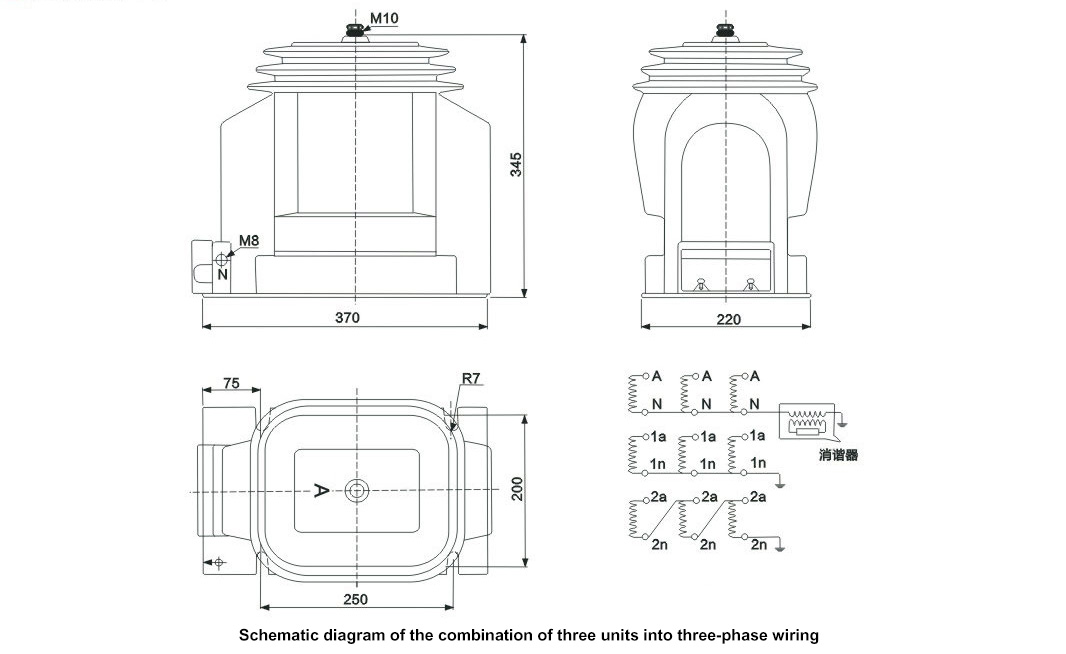

Installation Dimensions
