Product Category: 15、20 Kvoltajitter Ransformer

Intro:

JDZX11-15G,、20G Voltage Transformer

Relate Products

Detail

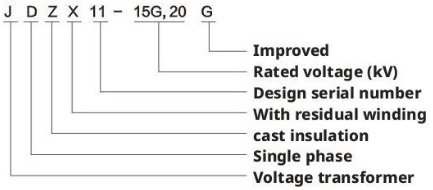

Model Meaning

Technical Parameters

Model	Rated Voltage Ratio (kV)	Accuracy Class and Combination	Rated Output (VA)	Thermal Limit Output (VA)	Rated Insulation Level (kV)
JDZX11-15G	13.8/√3 / 0.1/√3 / 0.1/√3 / 0.1/3	0.2/6P(3P) 0.5/6P(3P) 1/6P(3P)	20/100 60/100 120/100	400	18/55/105
	15/√3 / 0.1/√3 / 0.1/√3 / 0.1/3
	15.7/√3 / 0.1/√3 / 0.1/√3 / 0.1/3
	18/√3 / 0.1/√3 / 0.1/√3 / 0.1/3
JDZX11-20G	20/√3 / 0.1/√3 / 0.1/√3 / 0.1/3				24/65/125

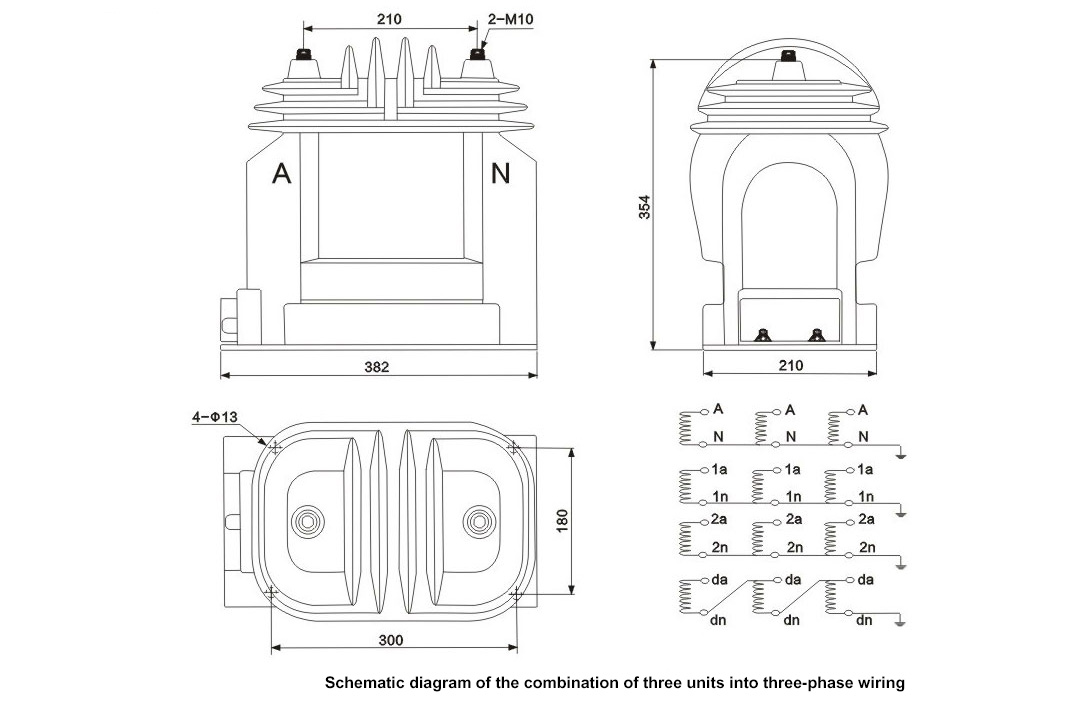

Installation Dimensions
