JDZF11-15、20 Voltage Transformer

JDZF11-15、20 Voltage Transformer

Product Category: 15、20 Kvoltajitter Ransformer

Intro:

JDZF11-15、20 Voltage Transformer

Relate Products

Detail

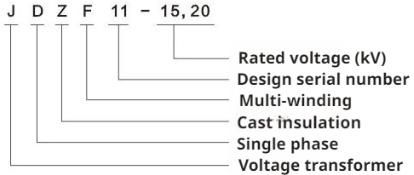

Model Meaning

Technical Parameters

Model	Rated Voltage Ratio (kV)	Accuracy Class Combination	Rated Output (VA)	Thermal Limit Output (VA)	Rated Insulation Level (kV)
JDZF11-15	13.8/0.1/0.1	0.2/0.2 0.2/0.5 0.5/0.5	20/20 20/30 30/30	300	18/55/105
	15/0.1/0.1
	15.7/0.1/0.1
	18/0.1/0.1
JDZF11-20	20/0.1/0.1				24/65/125

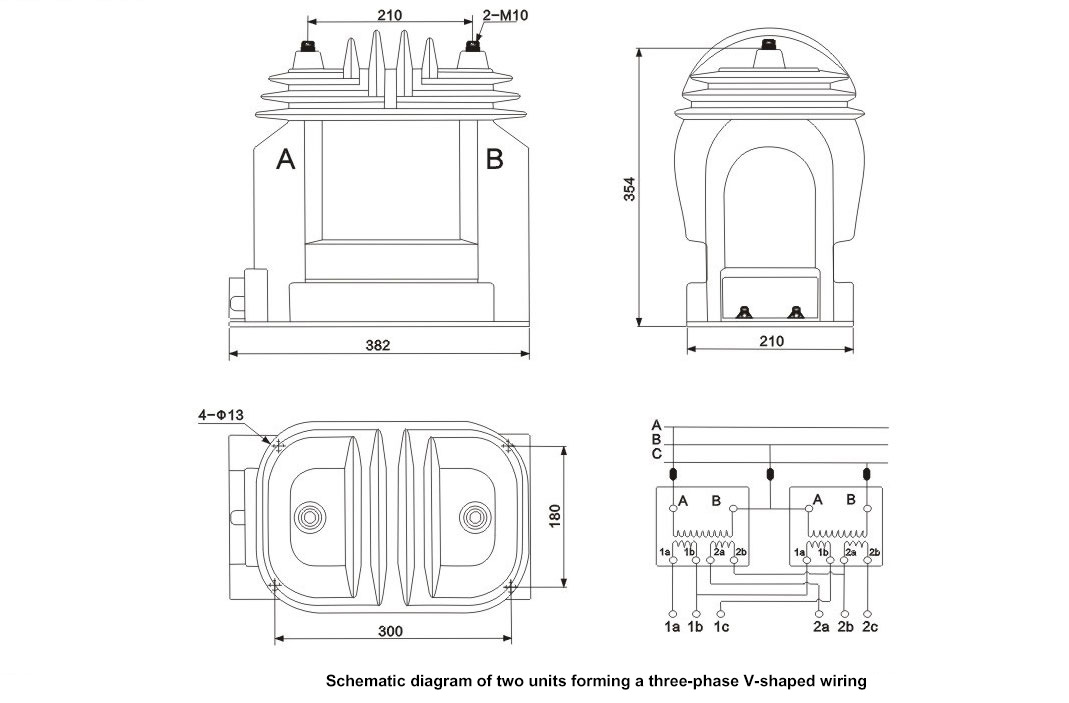

Installation Dimensions
