JDZ11-15、20 Voltage Transformer

Product Category: 15、20 Kvoltajitter Ransformer

Intro:

JDZ11-15、20 Voltage Transformer

Detail

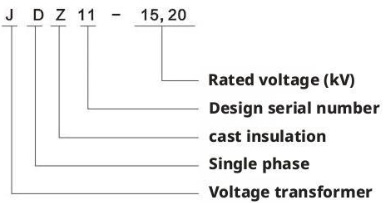

Model Meaning



Technical Parameters

ModelRated Voltage Ratio (kV)Accuracy Class CombinationRated Output (VA)Thermal Limit Output (VA)Rated Insulation Level (kV)
JDZ11-1513.8/0.10.2
0.5
1
30
80
200
50018/55/105
15/0.1
15.7/0.1
18/0.1
JDZ11-2020/0.124/65/125

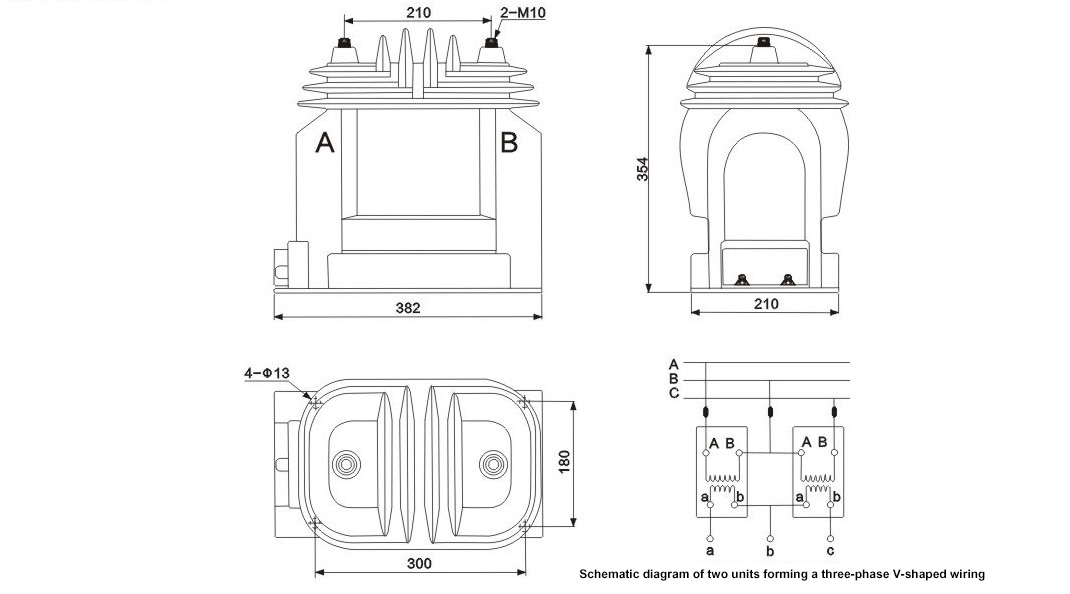

Installation Dimensions
