LDZBJ20-35 Current Transformer

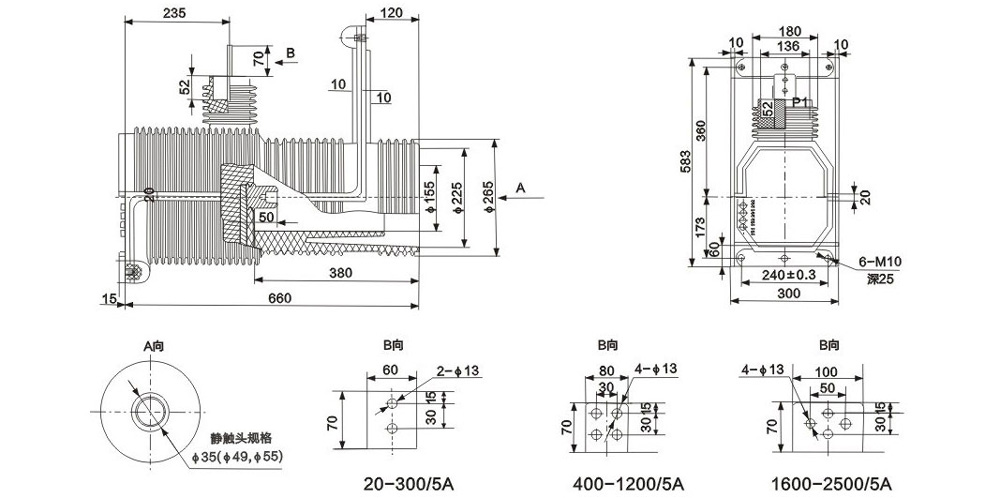

Detail

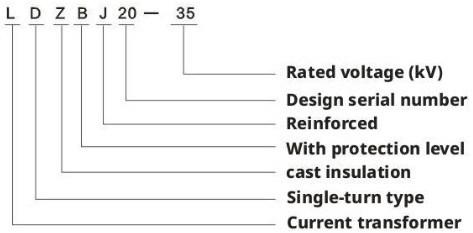

Model Meaning

Technical Parameters

Rated Primary Current (A)	Accuracy Class Combination and Corresponding Rated Output (VA)				Rated Short-time Withstand Current (1s rms) (kA)	Rated Dynamic Stability Current (Peak) (kA)
Rated Primary Current (A)	0.2/10P10	0.5/10P10	0.2/0.5	10P10/10P10	Rated Short-time Withstand Current (1s rms) (kA)	Rated Dynamic Stability Current (Peak) (kA)
20-300	10/30	20/30	10/20	20/20	150I1n	345I1n
400-500	10/40	15/40	10/15	25/25	63	130
600-1000	20/50	30/50	20/30	30/30	63	130
1200-1600	30/50	50/50	30/50	40/40	80	180
2000-2500	40/50	50/50	40/50	50/50	100	180
