Detail

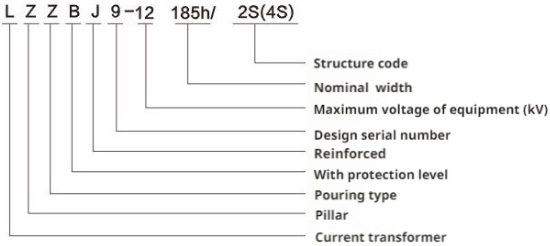

Model Meaning
Technical Parameters
LZZBJ9-12/185h/2S Type Accurate Level Combination and Corresponding Secondary Output
| Rated Secondary Output (VA) | 10-500A | 600-2500A |
| Accuracy Class Combination | 0.2S | 0.2 | 0.5 | 10P10 | 10P15 | 0.2S | 0.2 | 0.5 | 10P10 | 10P15 |
| 0.2/0.2 10P10/10P10 | 10 | 15 | 20 | 15 | | 10 | 15 | 20 | 20 | 15 |
| 0.2/0.5 10P15/10P15 |
| 0.2/10P10 0.2/10P15 | 10 | 10 | 15 | 20 | 15 | 10 | 15 | 20 | 30 | 20 |
| 0.5/10P10 0.5/10P15 |
| 0.2/0.2/0.2 0.2/0.5/0.5 | 10 | 10 | 15 | 15 | 10 | 10 | 15 | 15 | 20 | 15 |
| 10P10/10P15 10P15/10P15 |
| 0.2/0.5/10P10 | 10 | 10 | 15 | 15 | | 10 | 10 | 15 | 20 | 15 |
| 0.2/0.5/10P15 |
LZZBJ9-12/185h/4S Type Accuracy Level Combination and Corresponding Secondary Output
| Rated Secondary Output (VA) | 20-500A | 600-2500A |
| Accuracy Class Combination | 0.2S | 0.2 | 0.5 | 10P10 | 10P15 | 10P20 | 0.2S | 0.2 | 0.5 | 10P10 | 10P15 | 10P20 |
| 0.2/10P15 0.2/10P20 | 10 | 10 | 20 | | 30 | 20 | 10 | 15 | 25 | | 40 | 30 |
| 0.2/10P15 0.5/10P20 |
| 10P15/10P15 10P20/10P20 | | | | 25 | 15 | | | | | 30 | 20 | |
| 10P10/10P20 | 10 | 10 | 15 | 15 | 20 | 20 | 10 | 15 | 20 | 15 | 25 | 25 |
| 0.2/10P10/10P10/10P10 |
| 0.2/10P10/10P10 0.5/10P10/10P10 | 10 | 10 | 15 | 20 | 15 | | 10 | 15 | 15 | 30 | 20 | 15 |
| 0.2/10P20/10P20 0.5/10P20/10P20 | | | | | | | | | | | | |
| 0.2/10P10/10P15 0.5/10P10/10P15 | 10 | 10 | 15 | 15 | 15 | | 10 | 15 | 15 | 15 | 30 | |
| 0.2/10P15/10P20 0.5/10P15/10P20 | 10 | 10 | 15 | | 15 | 15 | 10 | 15 | 15 | | 15 | 20 |
| 0.2/0.5/10P15 0.2/0.5/10P20 | 10 | 10 | 15 | | 30 | 20 | 10 | 15 | 20 | 30 | 40 | 30 |
| 0.2/0.2/0.5/10P10 | 10 | 10 | 15 | 20 | 15 | | 10 | 15 | 15 | 15 | 20 | |
| 0.2/0.2/0.5/10P15 |
| 0.2/0.5/10P10/10P15 | 10 | 10 | 15 | 15 | 15 | | 10 | 15 | 15 | | 20 | |
| 0.2/10P15/10P15/10P15 | 10 | 10 | 15 | | 10 | | 10 | 15 | 15 | 15 | 15 | |
| 0.2/10P10/10P15/10P15 | 10 | 10 | 15 | | | | | 15 | 15 | 20 | 15 | |
| 0.2/0.2/0.5/0.5 | 10 | 10 | 15 | | | | 10 | 15 | 20 | | 20 | 20 |
| 10P10/10P15/10P20 |
LZZBJ9-12/185h/2S (4S) Dynamic and Thermal Stable Current
| Rated Primary Current (A) | 10-40 | 50-100 | 150-300 | 400-500 | 600-1000 | 1200-1600 | 2000-2500 |
| Rated Thermal Stability Current (kA/rms) | 200I1n | 250I1n | 45 | 100 | 140 | 170 | 240 |
| Rated Dynamic Stability Current (kA/peak) | 500I1n | 625I1n | 100 | 250 | 350 | 425 | 600 |
