Product Category: Current Transformer

Intro:

LZZBJ9-12/150b/2S(4S)(Same As As12/1 50B/2S (4S)) Current Transformer

Relate Products

Detail

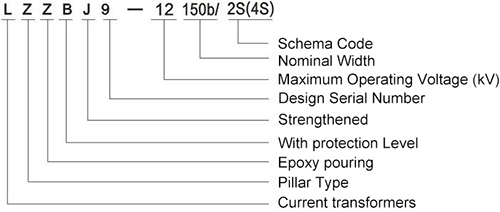

Model Meaning

Technical Parameters

Model	Rated Primary Current (A)	Rated Secondary Current (A)	Accuracy Class Combination	Accuracy Class and Corresponding Rated Load (VA)				Rated Thermal Stability Current (kA/rms)	Rated Dynamic Stability Current (kA/peak)
				0.2S	0.2/0.5S	0.5	5P10
LZZBJ9-12 /150b/2S	20	5 or 1	0.2S/02 0.2S/0.5 0.2S/5P10 0.2/5P10 0.5/5P10	10	10	15	15	5/2	16
	30							7/2	22
	40							12/2	38
	50, 60							18/2	56
	75							25/2	76
	100							31.5/2	100
	150
	200
	250, 300							31.5/3	100
	400, 500					20	20
	600			15		30	30	40/3	128
	750~2000							45/3	144

Model	Rated Primary Current (A)	Rated Secondary Current (A)	Accuracy Class Combination	Accuracy Class and Corresponding Rated Output (VA)				Rated Thermal Stability Current (kA/rms)	Rated Dynamic Stability Current (kA/peak)
				0.2S	0.2/0.5S	0.5	5P10
LZZBJ9-12 /150b/4S	20	5 or 1	0.2S/0.2/5P20 0.2S/0.5/5P20 0.2S/5P10/5P20 0.2/5P10/5P20 0.5/5P10/5P20 0.2/0.5/5P20 0.5/5P10/5P10	10	10	15	15	5/2	16
	30							7/2	22
	40							12/2	38
	50-60							18/2	56
	75							25/2	76
	100							31.5/2	100
	150
	200
	250-300							31.5/3	100
	400-500					20	20
	600			15		30	30	40/3	128
	750~2000							53/3	160

Installation Dimensions
