LSY3-10/107X Current Transformers

LSY3-10/107X Current Transformers

Product Category: Three-phase Integrated Current Transformer

Intro:

LSY3-10/107X Current Transformers

Relate Products

Detail

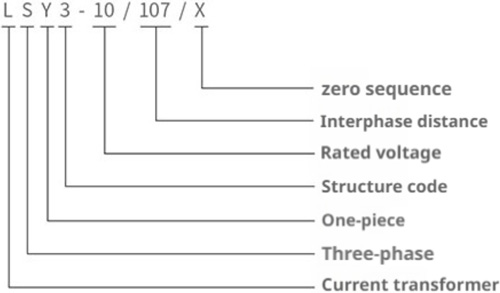

Model Meaning

Product Parameters

Model	Rated Primary Current	Accuracy Class and Rated Output (VA)					Zero-Sequence Protection	Accuracy Class	Rated Output
Model	Rated Primary Current	0.2s	0.2	0.5	3	10P10	Zero-Sequence Protection	Accuracy Class	Rated Output
LSY3-10/107/X	50/5				1	1	50/1	3	1
	75/5				1	1	60/1	3	1
	100/5				1	1	100/1	3	25
	150/5				1	1	150/1	3	25
	200/5			2.5	2.5	2.5
	300/5	2.5	2.5	2.5	2.5	2.5
	400/5	5	5	5	5	5
	500/5	5	5	5	5	5
	600/5	5	5	5	5	5
	800/5	10	10	10	10	10

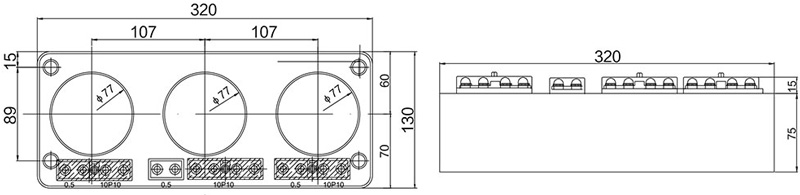

Installation Dimensions
