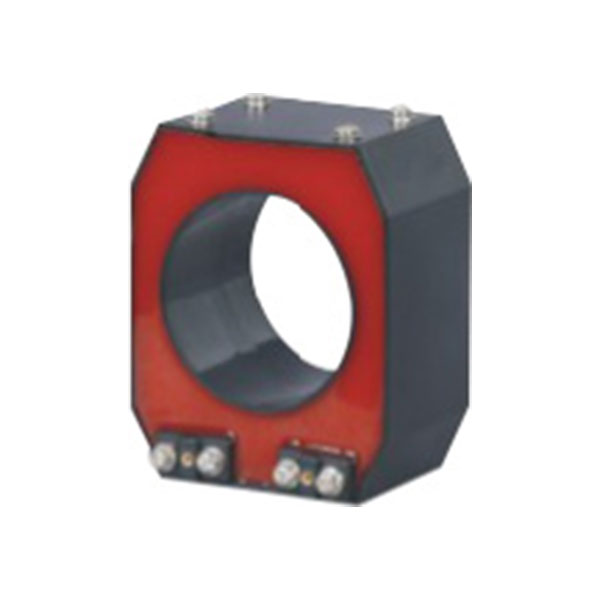

LMZT-10 Through-Heart Current Transformer For Inflatable Cabinet

Detail

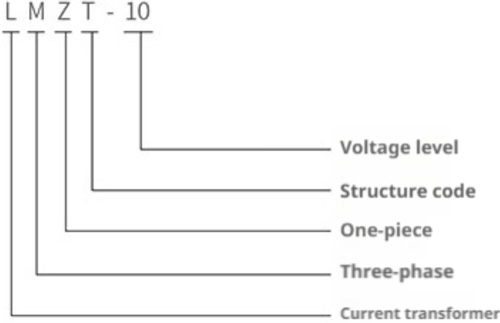

Model Meaning

Normal Working Conditions and Installation Conditions

Rated frequency: 50Hz or 60Hz

Rated secondary current: 5A or 1A

Power factor of load: COS<P=0.8 (hysteresis)

Rated short-time thermal current: 40kA, 2s

Instrument Security Factor (Measurement and Placement): FS<10

Rated Continuous Thermal Current: 1200%In

Accurate limit system (protection): 10P10, 10P15, 10P20, etc.

Product Parameters

Model	Purpose	Measuring Current Transformer Accuracy Class and Rated Load (VA)			Protective Current Transformer Accuracy Class and Rated Load (VA)			Dual Winding Current Transformer Composite Accuracy Class and Rated Load (VA)
Model	Rated Primary Current	0.2s	0.2	0.5	10P20	10P15	10P10	0.2s	0.5	10P15	10P10
LMZT-10	75	-	-	1	-	-	-	-	1	-	-
	100	-	-	2.5	-	-	-	-	1	-	-
	150	-	-	2.5	-	-	2.5	-	1.5	-	-
	200	-	2.5	2.5	-	-	5	-	2.5	-	5
	300	2.5	2.5	5	-	-	5	-	2.5	-	5
	400	5	5	5	-	-	7.5	-	5	-	7.5
	500	5	5	10	-	-	10	-	5	-	10
	600	5	5	10	-	-	10	-	5	-	10
	800	10	10	10	-	-	10	-	5	-	10
