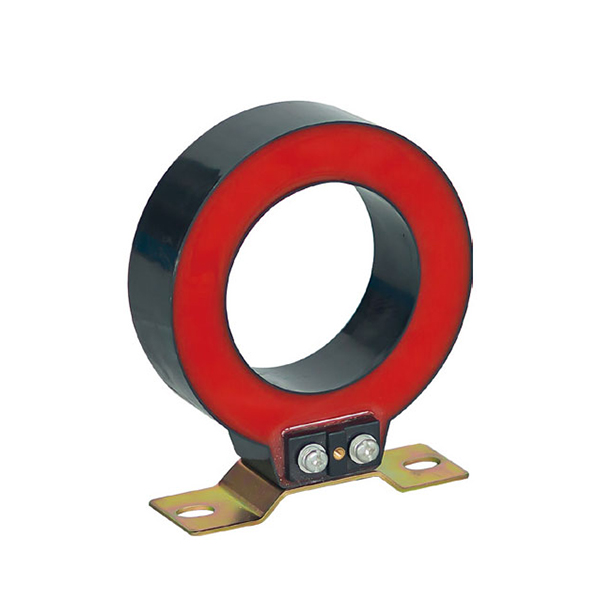

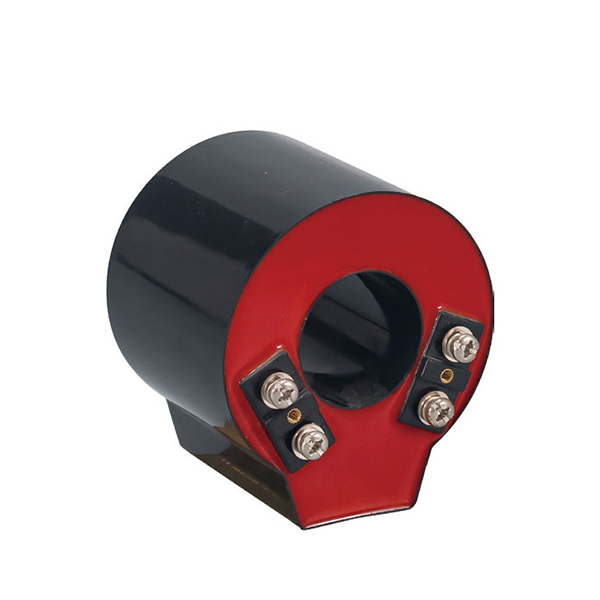

LMZC-10 Through-Heart Current Transformer For Inflatable Cabinet

Detail

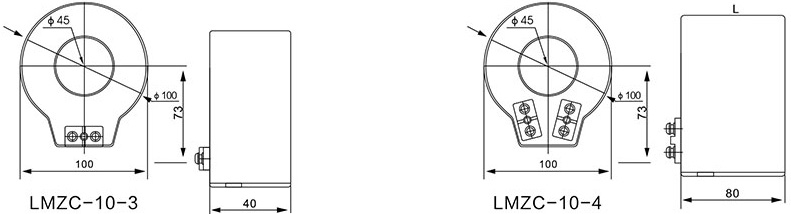

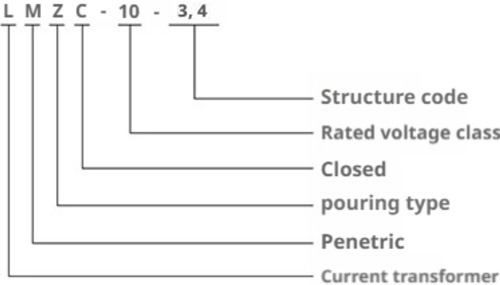

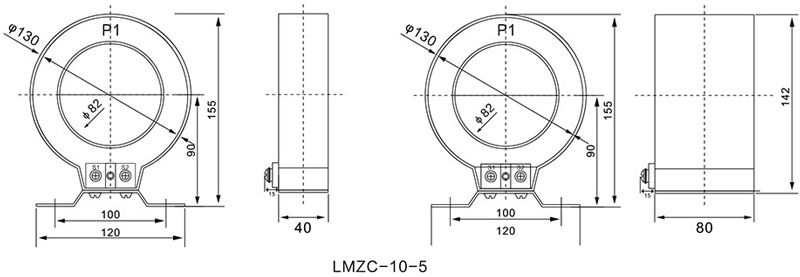

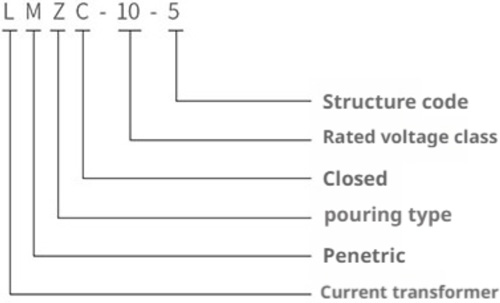

Model Meaning

Normal Working Conditions and Installation Conditions

Power factor of load: COS = 0.8 (hysteresis)

Rated secondary current: 5A or 1A

Ambient temperature: the minimum temperature is -5 °C, the maximum temperature is 40 °C, and the average daily temperature does not exceed 30 °C

Rated frequency: 50 or 60Hz

Altitude: ≤ 1000 meters

Pollution Level: Il

Product standard: GB20840.1 GB20840.2

Product Parameters

Model	Purpose	Measuring Current Transformer Accuracy Class and Rated Load (VA)			Protective Current Transformer Accuracy Class and Rated Load (VA)			Dual Winding Current Transformer Accuracy Class and Rated Load (VA)
Model	Rated Primary Current	0.2s	0.2	0.5	10P5	10P10	10P15	0.5	1	10P10	10P5
LMZC-10-3	75	-	-	-	2.5	-	-	-	-	-	-
	100	2.5	2.5	2.5	2.5	-	-	-	-	-	-
	150	2.5	2.5	2.5	3.75	-	-	-	-	-	-
	200	2.5	2.5	2.5	3.75	-	-	-	-	-	-
	300	5	5	5	5	-	-	-	-	-	-
	400	5	5	5	5	2.5	-	-	-	-	-
	500	10	10	10	7.5	2.5	-	-	-	-	-
600	10	10	10	10	5	-	-	-	-	-
LMZC-10-4	50	-	-	2.5	-	-	-	-	-	-	-
	75	2.5	3.75	3.75	2.5	2.5	1.5	-	-	-	-
	100	5	5	5	5	3.75	1.5	-	-	-	-
	150	5	5	5	7.5	3.75	1.5	-	-	-	-
	200	7.5	7.5	7.5	10	5	2.5	5	5	-	2.5
	300	10	10	10	15	7.5	5	7.5	7.5	-	3.75
	400	15	20	20	20	10	7.5	7.5	7.5	2.5	5
	500	20	25	25	25	10	7.5	10	10	2.5	5
	600	20	25	30	25	10	7.5	10	10	3.75	7.5
