Product Overview

LMZ port D-0.66 (NW) series current transformer is suitable for current and electric energy measurement in AC lines with rated frequency of 50Hz and rated working voltage of 0.66 and below. The product is a cast-type current transformer, which adopts the bottom plate fixed installation method.

Standards: GB208401, GB20840.2

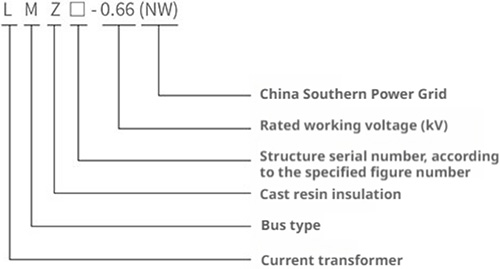

Model Meaning

Normal Working Conditions and Installation Conditions

1. Installation site: indoor;

2. Ambient temperature: -25°C ~ 40°C, daily average not more than 30°C;

3. Altitude: no more than 1000m;

4. Atmospheric conditions: when the maximum temperature is 40°C, the relative humidity of the air does not exceed 50%, and at a lower temperature, the allowable relative humidity does not exceed 80%;

5. There is no serious pollution in the atmosphere, and there is no gas and conductive dust in the medium that is enough to corrode the metal and destroy the insulation;

6. There is no violent vibration and bump at the installation site.

Product Parameters

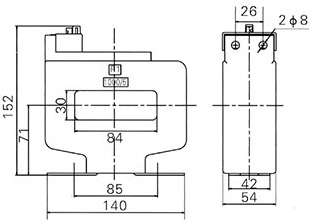

Installation Dimensions
