Product Overview
LFZD-0.66/LMZ O D-0.66 current transformer is suitable for indoors, and is used for current, electric energy measurement or relay protection in AC lines with rated frequency of 50Hz and rated voltage of 0.66kV and below. The product is a cast-type current transformer, and its installation method adopts the bus bar fixed installation method.
Standard: GB 20840.1, GB 20840.2

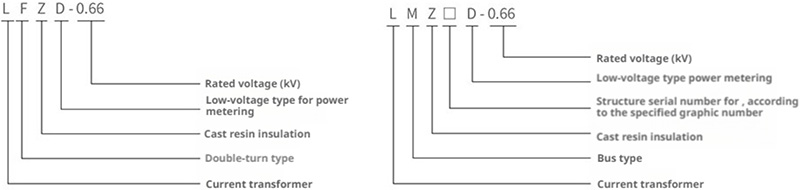

Model Meaning
Product Parameters
| Current Ratio | Rated Secondary Load (VA) | Window Turns |
| Class 0.5 | Class 0.5S | Class 0.2 | Class 0.2S |
| 1000/5 | 10 | 10 | 10 | 10 | 1 |
| 1200/5 | 10 | 10 | 10 | 10 | 1 |
| 1500/5 | 10 | 10 | 10 | 10 | 1 |
Installation Dimensions
